110 Series

The 110 Series provides robust electric cylinders for moderate to heavy thrust loads. Ball or lead screw types yield quiet operation, low backlash and high accuracy, with a choice of motor-to-screw reduction types. Exceptionally durable bearing and drive housings are available with optional environmental features to resist moisture and contaminants. The special design minimizes the need for routine maintenance.

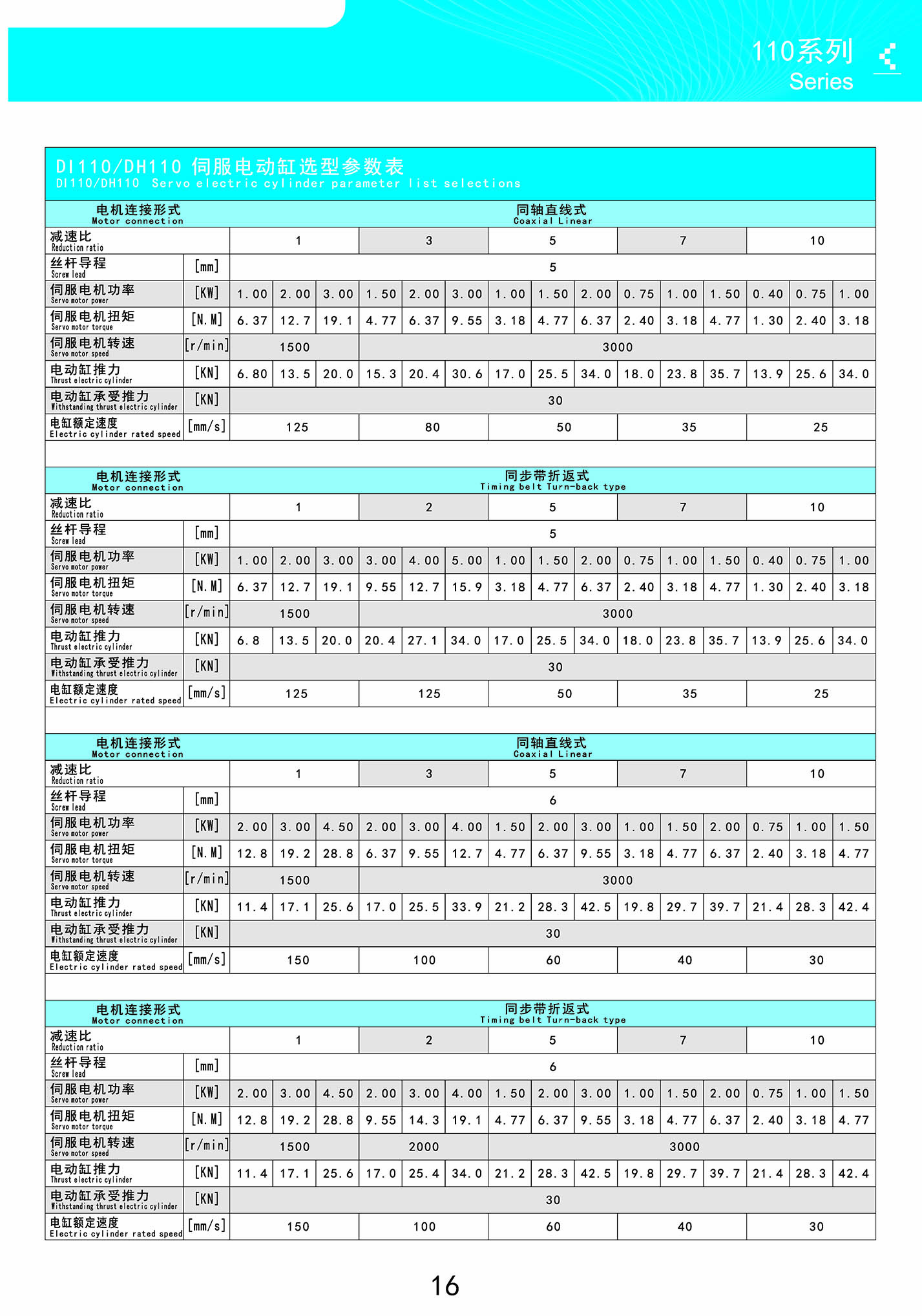

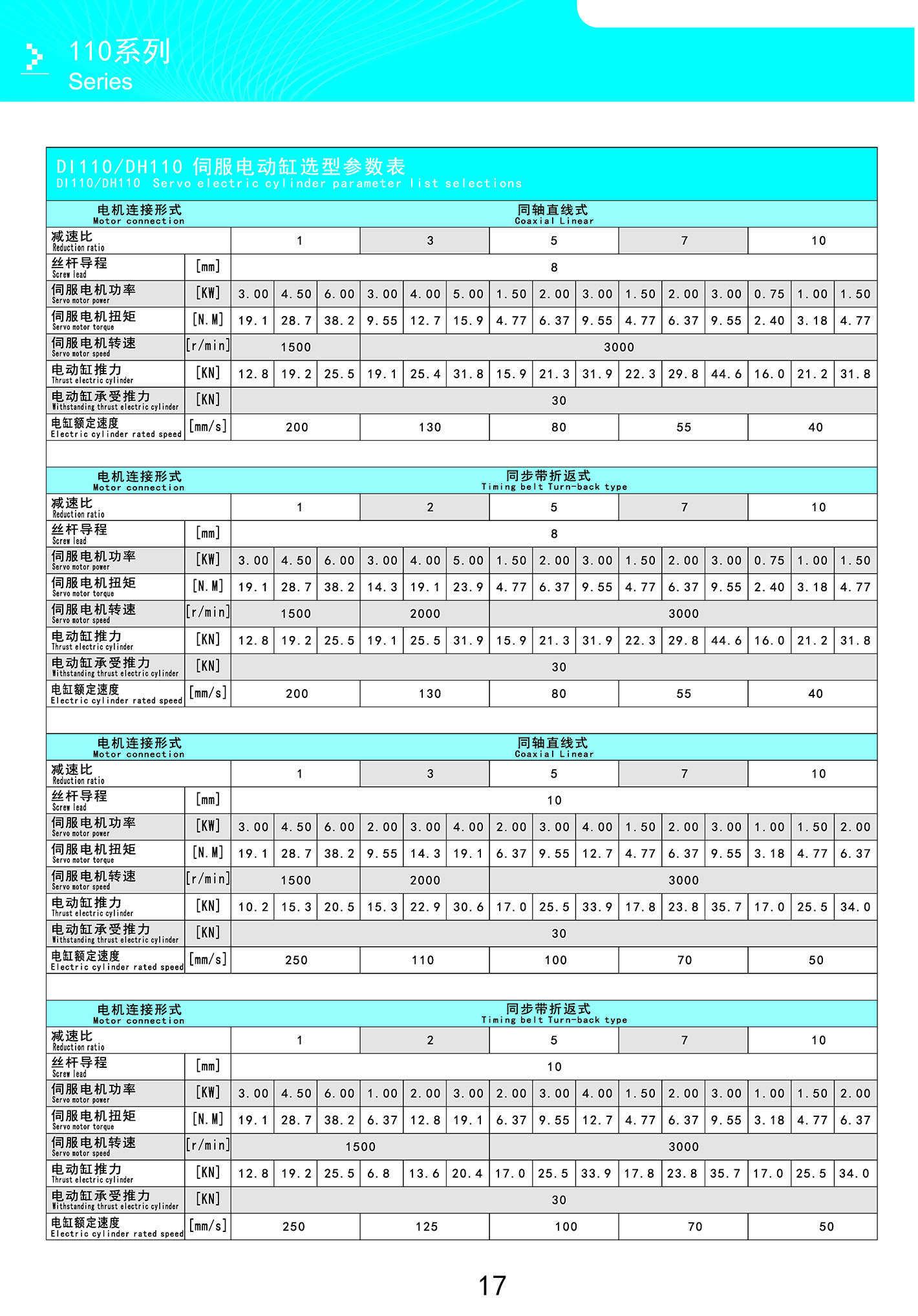

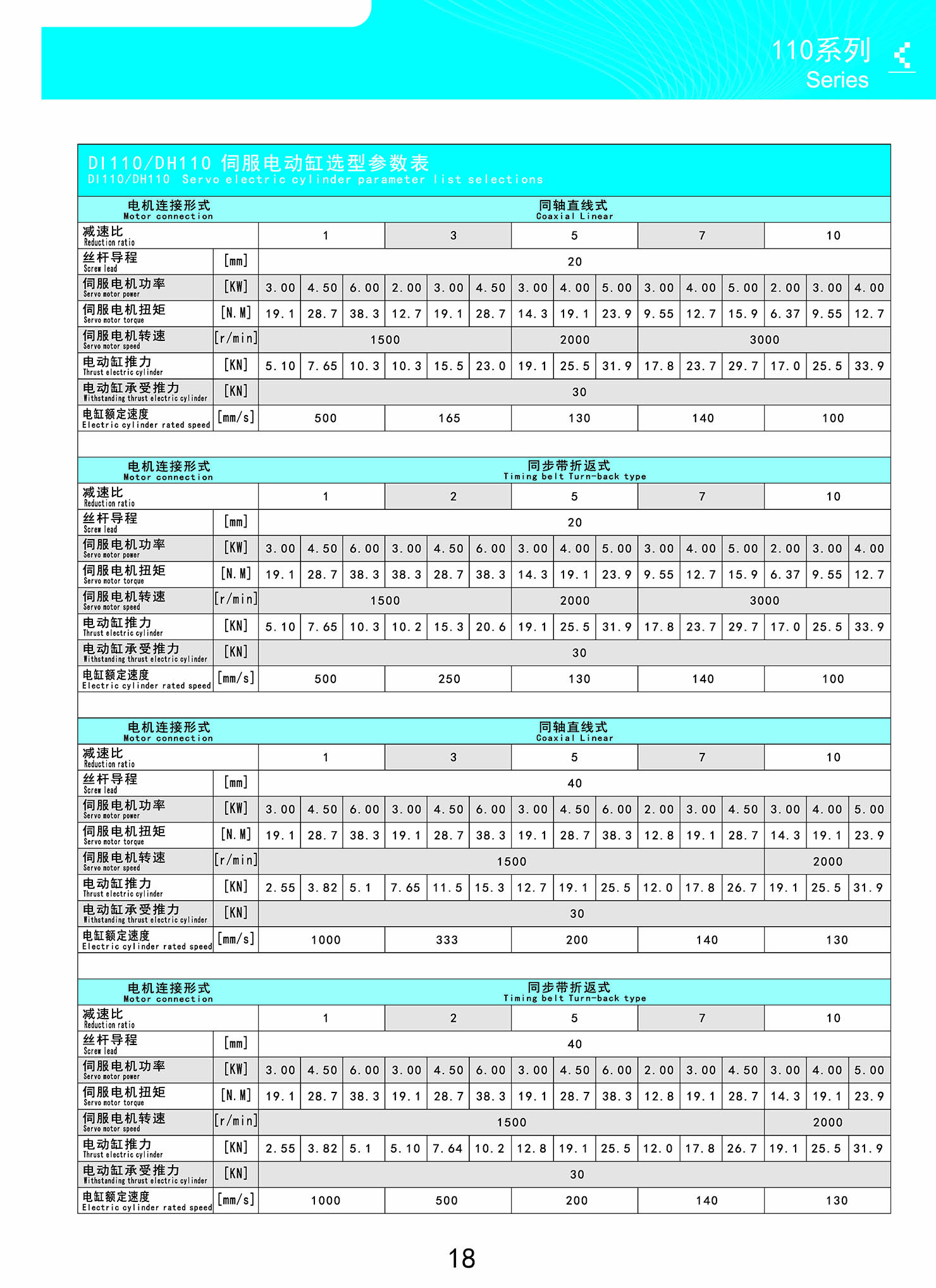

Features

  • Max stroke length: 2,000 mm
  • Max thrust: 42,000 N
  • Ball and lead screw driven with 4, 5, 10, 16 mm leads
  • Stepper, brushless servo and custom motor options
  • Bearing/drive housing: 6063-T6 aluminum, anodized
  • Mounting plates: 6061-T6 aluminum, cast aluminum plate, anodized
  • Thrust bearings: angular contact, high thrust ball bearings
  • Lead screw: carbon steel alloy, nut: bronze
  • Helical gearing: alloy steel, case-hardened
  • Guide cylinder: 6063-T6 aluminum, hard-anodized
  • Thrust tube: 300 series stainless steel, 1/4 hard and ground
  • Ballscrew and nut: heat-treated carbon steel alloy
  • Belt/pulley: AT-5, polyurethane with steel tensile cords

Options

  • Standard or custom lengths to 1 mm
  • Motor or screw brakes

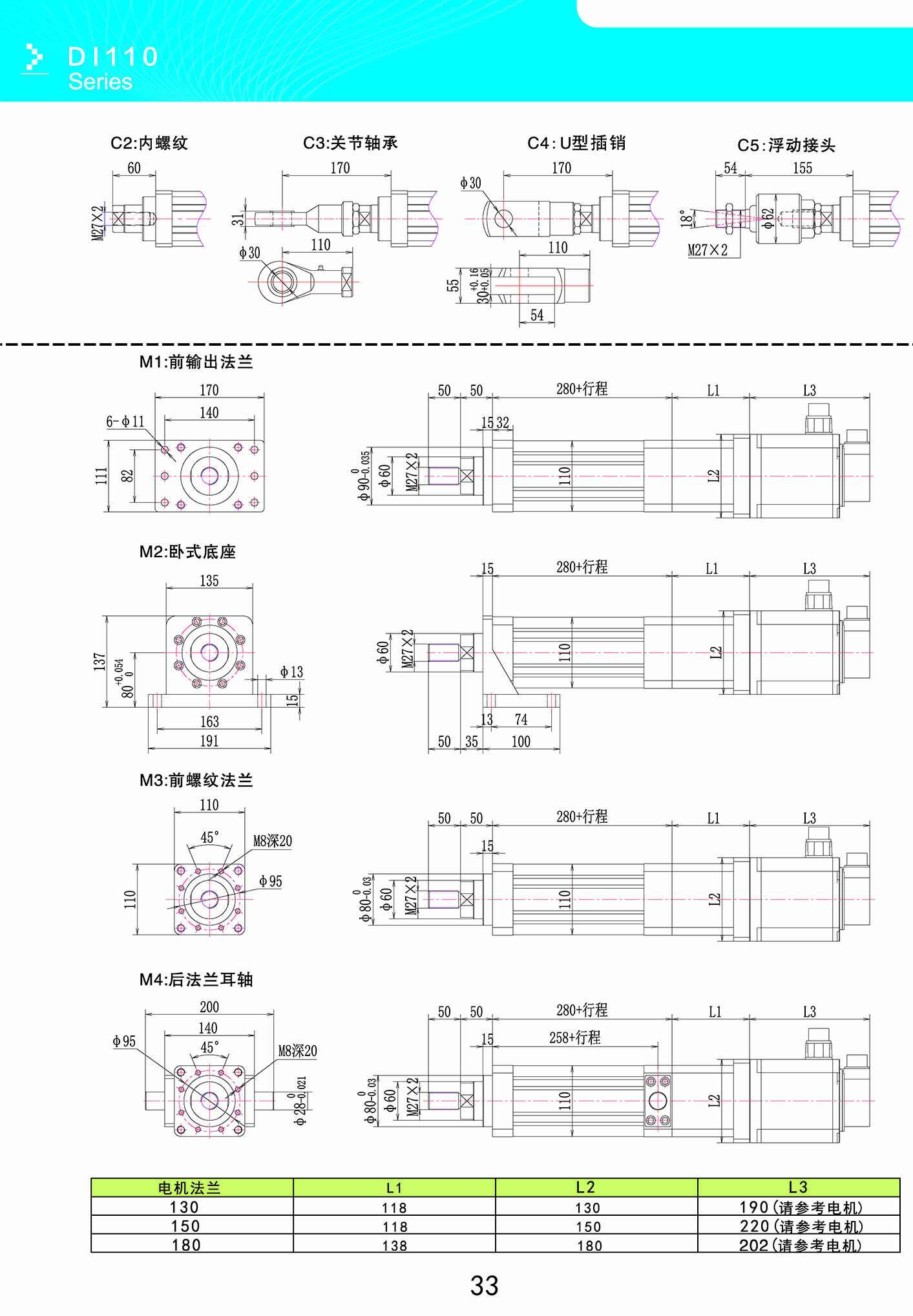

  • Threaded, spherical or clevis rod ends
  • Environmental protective boot
  • Timing belt, helical gear and inline direct transmission

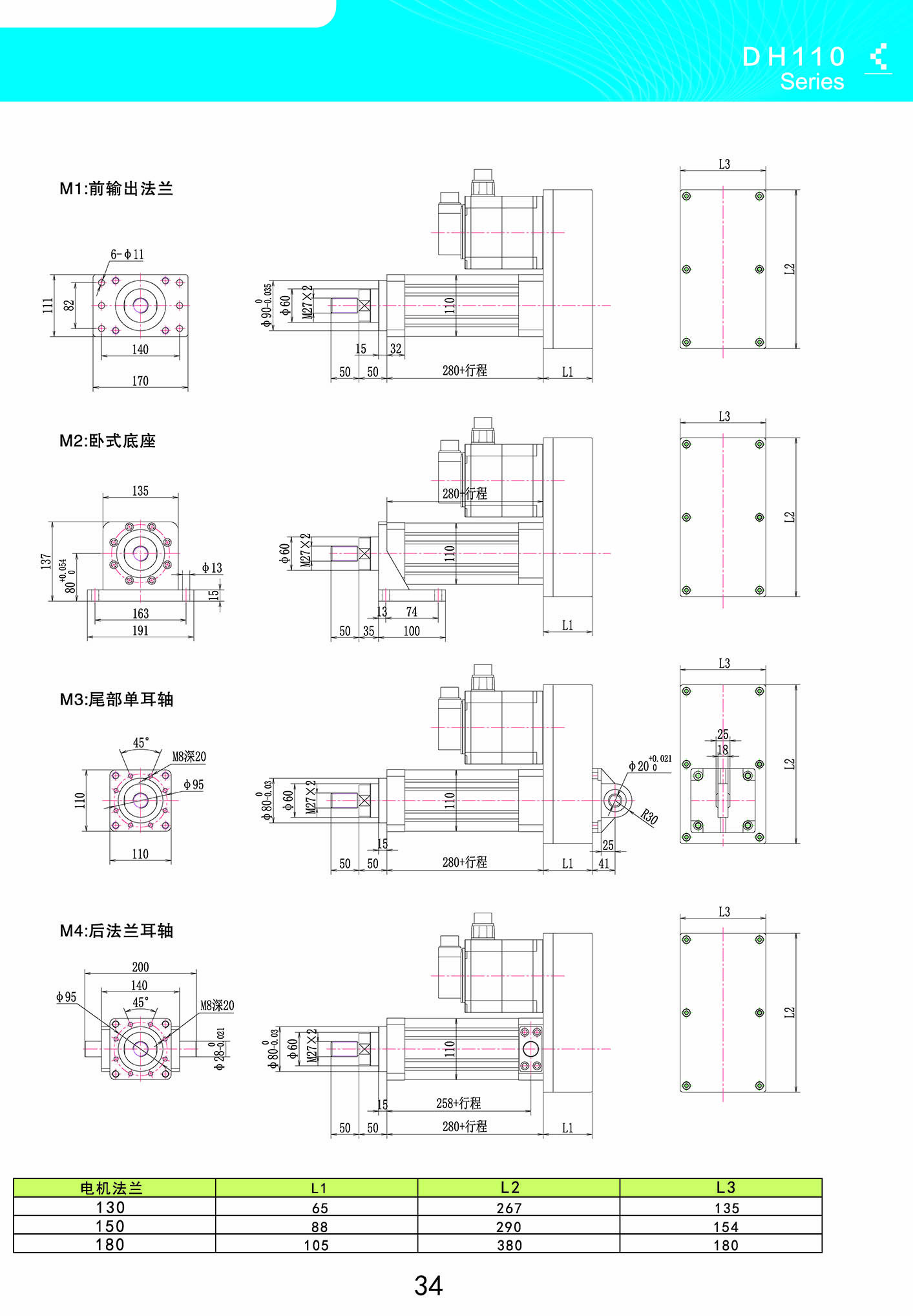

  • Flange, clevis, side and trunnion cylinder mounting types
  • Magnetic home and limit sensors
  • Linear potentiometer output
